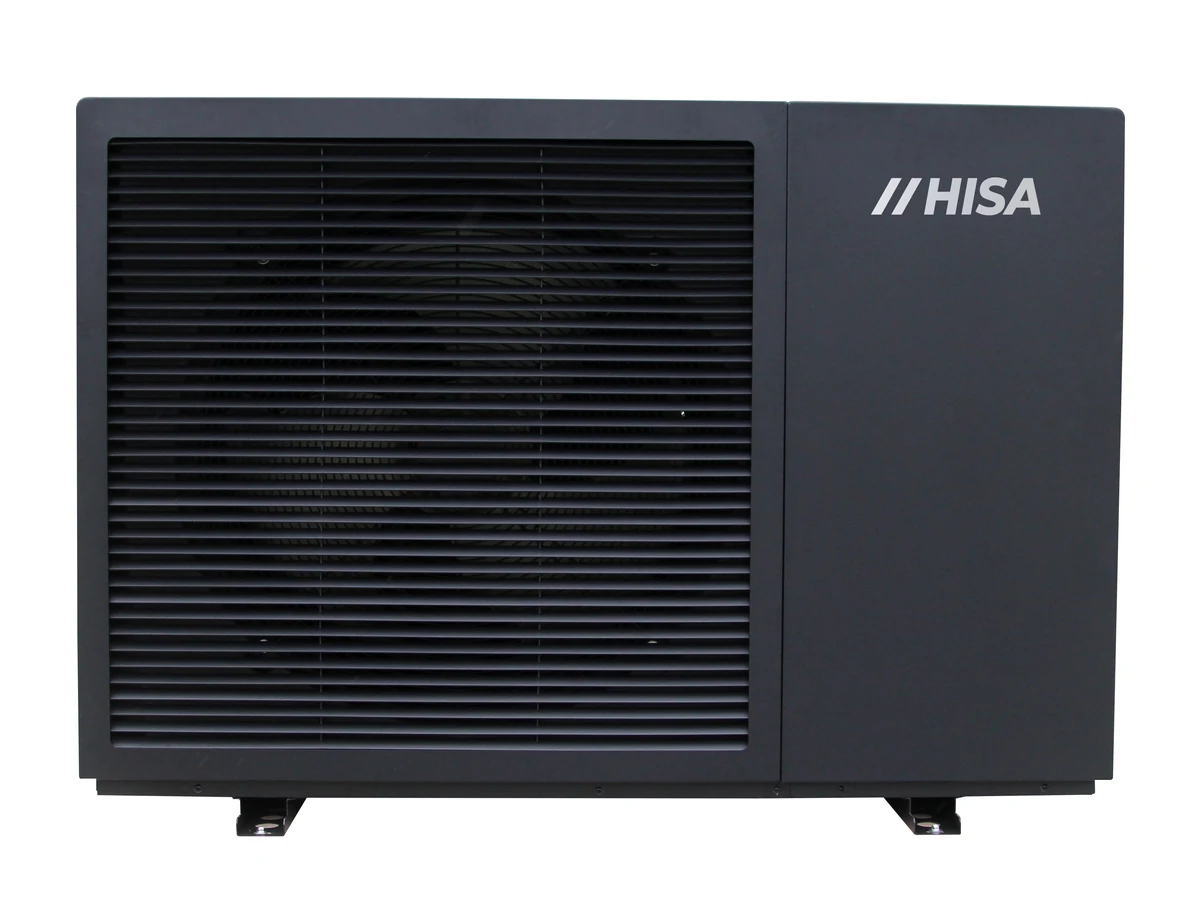

THE COMPACT ONE.
4 kW output class.
HISA R290
BUILT FOR BRITISH HOMES.BUILT FOR BRITISH WEATHER.
High-temperature R290 air source heat pumps designed around simple installation, efficient operation and long-term HISA support.
HISA R290 / AIR SOURCE HEAT PUMPS75°CMaximum flow temperature
4.85SCOP up to
4–18kWOutput range
10yearsHISA+ warranty
R290Natural refrigerant
LIFETIMERemote monitoring for the life of the system.
HEAT. DIFFERENTLY.
YOUR HOME.
NOT A COMPROMISE.
An existing home should not have to start again. HISA R290 brings high-temperature heat to radiators and underfloor heating — with system design matched to the home, not the other way round.
ONE RANGE / FIVE SIZES
ONE RANGE.
FIVE OUTPUTS.
Start with a model. Let a heat-loss calculation decide the size. The numbers identify output classes, not a promise of capacity at every temperature.
FOR THE HOMEOWNER. FOR THE INSTALLER.
THE DETAIL.
WHEN YOU NEED IT.
One model selection. Every technical view. Verified figures where we have them; a clear next step where we do not.
PerformanceHISA PERFORMANCE
HISA PERFORMANCE
EXPLORER
Explore rated heating capacity at the outdoor and flow temperatures actually present in the approved data. Select a point to read its exact value.
—kWRated heating output
Explore rated heating capacity at the outdoor and flow temperatures actually present in the approved data. Select a point to read its exact value.
Each marked point is a verified source value. Connecting lines are visual aids, not tested intermediate values. No interpolation or extrapolation. Not every temperature combination is available.
Source: HISA Gen 2.0 performance data. Rated heating capacity only.
80°C test data does not redefine the published maximum flow-temperature specification. Installers must consult HISA before system design.
HISA R290 4
All approved rated heating points — 101 points
| Outside °C | Flow °C | Capacity kW |
|---|---|---|
| -25 | 25 | 2.45 |
| -20 | 25 | 2.72 |
| -15 | 25 | 3.11 |
| -10 | 25 | 3.49 |
| -7 | 25 | 3.84 |
| -2 | 25 | 4.23 |
| 2 | 25 | 4.71 |
| 7 | 25 | 5.31 |
| 12 | 25 | 5.81 |
| 20 | 25 | 6.31 |
| 27 | 25 | 6.71 |
| -25 | 35 | 2.34 |
| -20 | 35 | 2.59 |
| -15 | 35 | 2.97 |
| -10 | 35 | 3.34 |
| -7 | 35 | 3.68 |
| -2 | 35 | 4.06 |
| 2 | 35 | 4.51 |
| 7 | 35 | 5.08 |
| 12 | 35 | 5.58 |
| 20 | 35 | 6.08 |
| 27 | 35 | 6.48 |
| -25 | 45 | 2.27 |
| -20 | 45 | 2.48 |
| -15 | 45 | 2.83 |
| -10 | 45 | 3.18 |
| -7 | 45 | 3.5 |
| -2 | 45 | 3.86 |
| 2 | 45 | 4.26 |
| 7 | 45 | 4.845 |
| 12 | 45 | 5.345 |
| 20 | 45 | 5.845 |
| 27 | 45 | 6.245 |
| -25 | 50 | 2.21 |
| -20 | 50 | 2.425 |
| -15 | 50 | 2.76 |
| -10 | 50 | 3.1 |
| -7 | 50 | 3.41 |
| -2 | 50 | 3.76 |
| 2 | 50 | 4.135 |
| 7 | 50 | 4.7275 |
| 12 | 50 | 5.2275 |
| 20 | 50 | 5.7275 |
| 27 | 50 | 6.1275 |
| -25 | 55 | 2.15 |
| -20 | 55 | 2.37 |
| -15 | 55 | 2.69 |
| -10 | 55 | 3.02 |
| -7 | 55 | 3.32 |
| -2 | 55 | 3.66 |
| 2 | 55 | 4.01 |
| 7 | 55 | 4.61 |
| 12 | 55 | 5.11 |
| 20 | 55 | 5.61 |
| 27 | 55 | 6.01 |
| -25 | 60 | 2.125 |
| -20 | 60 | 2.325 |
| -15 | 60 | 2.635 |
| -10 | 60 | 2.955 |
| -7 | 60 | 3.24 |
| -2 | 60 | 3.57 |
| 2 | 60 | 3.94 |
| 7 | 60 | 4.5 |
| 12 | 60 | 5 |
| 20 | 60 | 5.5 |
| 27 | 60 | 5.9 |
| -25 | 65 | 2.1 |
| -20 | 65 | 2.28 |
| -15 | 65 | 2.58 |
| -10 | 65 | 2.89 |
| -7 | 65 | 3.16 |
| -2 | 65 | 3.48 |
| 2 | 65 | 3.87 |
| 7 | 65 | 4.39 |
| 12 | 65 | 4.89 |
| 20 | 65 | 5.39 |
| 27 | 65 | 5.79 |
| -15 | 70 | 2.44 |
| -10 | 70 | 2.73 |
| -7 | 70 | 2.98 |
| -2 | 70 | 3.28 |
| 2 | 70 | 3.66 |
| 7 | 70 | 4.18 |
| 12 | 70 | 4.68 |
| 20 | 70 | 5.18 |
| 27 | 70 | 5.58 |
| -15 | 75 | 2.3 |
| -10 | 75 | 2.57 |
| -7 | 75 | 2.8 |
| -2 | 75 | 3.08 |
| 2 | 75 | 3.44 |
| 7 | 75 | 3.96 |
| 12 | 75 | 4.46 |
| 20 | 75 | 4.96 |
| -10 | 80 | 2.41 |
| -7 | 80 | 2.62 |
| -2 | 80 | 2.88 |
| 2 | 80 | 3.26 |
| 7 | 80 | 3.76 |
| 12 | 80 | 4.26 |
| 20 | 80 | 4.76 |
HISA R290 6
All approved rated heating points — 101 points
| Outside °C | Flow °C | Capacity kW |
|---|---|---|
| -25 | 25 | 3.85 |
| -20 | 25 | 4.22 |
| -15 | 25 | 4.78 |
| -10 | 25 | 5.234 |
| -7 | 25 | 5.584 |
| -2 | 25 | 5.974 |
| 2 | 25 | 6.354 |
| 7 | 25 | 7.15 |
| 12 | 25 | 7.484 |
| 20 | 25 | 8.09 |
| 27 | 25 | 8.8 |
| -25 | 35 | 3.61 |
| -20 | 35 | 4.01 |
| -15 | 35 | 4.62 |
| -10 | 35 | 5.084 |
| -7 | 35 | 5.424 |
| -2 | 35 | 5.804 |
| 2 | 35 | 6.154 |
| 7 | 35 | 6.9 |
| 12 | 35 | 7.324 |
| 20 | 35 | 7.824 |
| 27 | 35 | 8.38 |
| -25 | 45 | 3.28 |
| -20 | 45 | 3.82 |
| -15 | 45 | 4.45 |
| -10 | 45 | 4.92 |
| -7 | 45 | 5.244 |
| -2 | 45 | 5.604 |
| 2 | 45 | 5.96 |
| 7 | 45 | 6.55 |
| 12 | 45 | 6.98 |
| 20 | 45 | 7.36 |
| 27 | 45 | 7.89 |
| -25 | 50 | 3.12 |
| -20 | 50 | 3.65 |
| -15 | 50 | 4.3 |
| -10 | 50 | 4.78 |
| -7 | 50 | 5.11 |
| -2 | 50 | 5.504 |
| 2 | 50 | 5.829 |
| 7 | 50 | 6.206 |
| 12 | 50 | 6.706 |
| 20 | 50 | 7.12 |
| 27 | 50 | 7.61 |
| -25 | 55 | 2.97 |
| -20 | 55 | 3.5 |
| -15 | 55 | 4.18 |
| -10 | 55 | 4.68 |
| -7 | 55 | 4.91 |
| -2 | 55 | 5.35 |
| 2 | 55 | 5.654 |
| 7 | 55 | 6 |
| 12 | 55 | 6.5 |
| 20 | 55 | 7 |
| 27 | 55 | 7.39 |
| -25 | 60 | 2.8 |
| -20 | 60 | 3.32 |
| -15 | 60 | 4 |
| -10 | 60 | 4.54 |
| -7 | 60 | 4.8 |
| -2 | 60 | 5.14 |
| 2 | 60 | 5.45 |
| 7 | 60 | 5.815 |
| 12 | 60 | 6.3 |
| 20 | 60 | 6.7 |
| 27 | 60 | 7.1 |
| -25 | 65 | 2.61 |
| -20 | 65 | 3.17 |
| -15 | 65 | 3.8 |
| -10 | 65 | 4.4 |
| -7 | 65 | 4.65 |
| -2 | 65 | 4.92 |
| 2 | 65 | 5.21 |
| 7 | 65 | 5.58 |
| 12 | 65 | 6 |
| 20 | 65 | 6.34 |
| 27 | 65 | 6.85 |
| -15 | 70 | 3.67 |
| -10 | 70 | 4.12 |
| -7 | 70 | 4.37 |
| -2 | 70 | 4.77 |
| 2 | 70 | 4.99 |
| 7 | 70 | 5.38 |
| 12 | 70 | 5.58 |
| 20 | 70 | 5.99 |
| 27 | 70 | 6.58 |
| -15 | 75 | 3.45 |
| -10 | 75 | 4 |
| -7 | 75 | 4.2 |
| -2 | 75 | 4.53 |
| 2 | 75 | 4.79 |
| 7 | 75 | 5.2 |
| 12 | 75 | 5.38 |
| 20 | 75 | 5.85 |
| -10 | 80 | 3.88 |
| -7 | 80 | 4.1 |
| -2 | 80 | 4.44 |
| 2 | 80 | 4.65 |
| 7 | 80 | 5.11 |
| 12 | 80 | 5.28 |
| 20 | 80 | 5.74 |
HISA R290 8
All approved rated heating points — 101 points
| Outside °C | Flow °C | Capacity kW |
|---|---|---|
| -25 | 25 | 4.72 |
| -20 | 25 | 5.47 |
| -15 | 25 | 6.23 |
| -10 | 25 | 6.85 |
| -7 | 25 | 7.24 |
| -2 | 25 | 7.71 |
| 2 | 25 | 8.03 |
| 7 | 25 | 8.66 |
| 12 | 25 | 9.09 |
| 20 | 25 | 9.5 |
| 27 | 25 | 10.46 |
| -25 | 35 | 4.56 |
| -20 | 35 | 5.33 |
| -15 | 35 | 6.09 |
| -10 | 35 | 6.73 |
| -7 | 35 | 7.02 |
| -2 | 35 | 7.57 |
| 2 | 35 | 7.92 |
| 7 | 35 | 8.44 |
| 12 | 35 | 8.9 |
| 20 | 35 | 9.25 |
| 27 | 35 | 10.16 |
| -25 | 45 | 4.37 |
| -20 | 45 | 5.16 |
| -15 | 45 | 5.94 |
| -10 | 45 | 6.58 |
| -7 | 45 | 6.87 |
| -2 | 45 | 7.4 |
| 2 | 45 | 7.72 |
| 7 | 45 | 8.22 |
| 12 | 45 | 8.7 |
| 20 | 45 | 9.02 |
| 27 | 45 | 9.89 |
| -25 | 50 | 4.2 |
| -20 | 50 | 4.98 |
| -15 | 50 | 5.77 |
| -10 | 50 | 6.4 |
| -7 | 50 | 6.71 |
| -2 | 50 | 7.21 |
| 2 | 50 | 7.58 |
| 7 | 50 | 8.12 |
| 12 | 50 | 8.5 |
| 20 | 50 | 8.8 |
| 27 | 50 | 9.61 |
| -25 | 55 | 4.08 |
| -20 | 55 | 4.843 |
| -15 | 55 | 5.63 |
| -10 | 55 | 6.26 |
| -7 | 55 | 6.61 |
| -2 | 55 | 7.08 |
| 2 | 55 | 7.43 |
| 7 | 55 | 8.06 |
| 12 | 55 | 8.41 |
| 20 | 55 | 8.71 |
| 27 | 55 | 9.51 |
| -25 | 60 | 3.95 |
| -20 | 60 | 4.78 |
| -15 | 60 | 5.59 |
| -10 | 60 | 6.21 |
| -7 | 60 | 6.53 |
| -2 | 60 | 7 |
| 2 | 60 | 7.34 |
| 7 | 60 | 7.86 |
| 12 | 60 | 8.25 |
| 20 | 60 | 8.54 |
| 27 | 60 | 9.36 |
| -25 | 65 | 3.9 |
| -20 | 65 | 4.72 |
| -15 | 65 | 5.48 |
| -10 | 65 | 6.14 |
| -7 | 65 | 6.42 |
| -2 | 65 | 6.9 |
| 2 | 65 | 7.23 |
| 7 | 65 | 7.64 |
| 12 | 65 | 8.11 |
| 20 | 65 | 8.44 |
| 27 | 65 | 9.2 |
| -15 | 70 | 5.32 |
| -10 | 70 | 6 |
| -7 | 70 | 6.26 |
| -2 | 70 | 6.74 |
| 2 | 70 | 7.01 |
| 7 | 70 | 7.42 |
| 12 | 70 | 7.94 |
| 20 | 70 | 8.2 |
| 27 | 70 | 9 |
| -15 | 75 | 5.2 |
| -10 | 75 | 5.82 |
| -7 | 75 | 6.15 |
| -2 | 75 | 6.64 |
| 2 | 75 | 6.89 |
| 7 | 75 | 7.25 |
| 12 | 75 | 7.8 |
| 20 | 75 | 8.03 |
| -10 | 80 | 5.68 |
| -7 | 80 | 6 |
| -2 | 80 | 6.45 |
| 2 | 80 | 6.77 |
| 7 | 80 | 7.02 |
| 12 | 80 | 7.56 |
| 20 | 80 | 7.85 |
HISA R290 12
All approved rated heating points — 101 points
| Outside °C | Flow °C | Capacity kW |
|---|---|---|
| -25 | 25 | 7.176 |
| -20 | 25 | 8.38 |
| -15 | 25 | 9.584 |
| -10 | 25 | 10.545875 |
| -7 | 25 | 11.174 |
| -2 | 25 | 11.8532857142857 |
| 2 | 25 | 12.3967142857143 |
| 7 | 25 | 13.126 |
| 12 | 25 | 13.974 |
| 20 | 25 | 14.5 |
| 27 | 25 | 15.8867 |
| -25 | 35 | 6.911 |
| -20 | 35 | 8.115 |
| -15 | 35 | 9.319 |
| -10 | 35 | 10.280875 |
| -7 | 35 | 10.858 |
| -2 | 35 | 11.5376428571429 |
| 2 | 35 | 12.0813571428571 |
| 7 | 35 | 12.761 |
| 12 | 35 | 13.601 |
| 20 | 35 | 14.097 |
| 27 | 35 | 15.4445 |
| -25 | 45 | 6.646 |
| -20 | 45 | 7.85 |
| -15 | 45 | 9.054 |
| -10 | 45 | 10.015875 |
| -7 | 45 | 10.542 |
| -2 | 45 | 11.222 |
| 2 | 45 | 11.766 |
| 7 | 45 | 12.396 |
| 12 | 45 | 13.228 |
| 20 | 45 | 13.694 |
| 27 | 45 | 15.0023 |
| -25 | 50 | 6.5135 |
| -20 | 50 | 7.7175 |
| -15 | 50 | 8.9215 |
| -10 | 50 | 9.883375 |
| -7 | 50 | 10.384 |
| -2 | 50 | 11.0641785714286 |
| 2 | 50 | 11.6083214285714 |
| 7 | 50 | 12.2135 |
| 12 | 50 | 13.0415 |
| 20 | 50 | 13.4925 |
| 27 | 50 | 14.7812 |
| -25 | 55 | 6.381 |
| -20 | 55 | 7.585 |
| -15 | 55 | 8.789 |
| -10 | 55 | 9.750875 |
| -7 | 55 | 10.226 |
| -2 | 55 | 10.9063571428571 |
| 2 | 55 | 11.4506428571429 |
| 7 | 55 | 12.031 |
| 12 | 55 | 12.855 |
| 20 | 55 | 13.291 |
| 27 | 55 | 14.5601 |
| -25 | 60 | 6.2485 |
| -20 | 60 | 7.4525 |
| -15 | 60 | 8.6565 |
| -10 | 60 | 9.618375 |
| -7 | 60 | 10.068 |
| -2 | 60 | 10.7485357142857 |
| 2 | 60 | 11.2929642857143 |
| 7 | 60 | 11.8485 |
| 12 | 60 | 12.6685 |
| 20 | 60 | 13.0895 |
| 27 | 60 | 14.304 |
| -25 | 65 | 6.116 |
| -20 | 65 | 7.32 |
| -15 | 65 | 8.524 |
| -10 | 65 | 9.485875 |
| -7 | 65 | 9.91 |
| -2 | 65 | 10.5907142857143 |
| 2 | 65 | 11.1352857142857 |
| 7 | 65 | 11.666 |
| 12 | 65 | 12.482 |
| 20 | 65 | 12.888 |
| 27 | 65 | 14.0479 |
| -15 | 70 | 8.3915 |
| -10 | 70 | 9.353375 |
| -7 | 70 | 9.752 |
| -2 | 70 | 10.4328928571429 |
| 2 | 70 | 10.9776071428571 |
| 7 | 70 | 11.4835 |
| 12 | 70 | 12.2955 |
| 20 | 70 | 12.6865 |
| 27 | 70 | 13.7918 |
| -15 | 75 | 8.259 |
| -10 | 75 | 9.220875 |
| -7 | 75 | 9.594 |
| -2 | 75 | 10.2750714285714 |
| 2 | 75 | 10.8199285714286 |
| 7 | 75 | 11.301 |
| 12 | 75 | 12.109 |
| 20 | 75 | 12.485 |
| -10 | 80 | 9 |
| -7 | 80 | 9.33 |
| -2 | 80 | 10.06 |
| 2 | 80 | 10.6 |
| 7 | 80 | 11.12 |
| 12 | 80 | 11.95 |
| 20 | 80 | 12.21 |

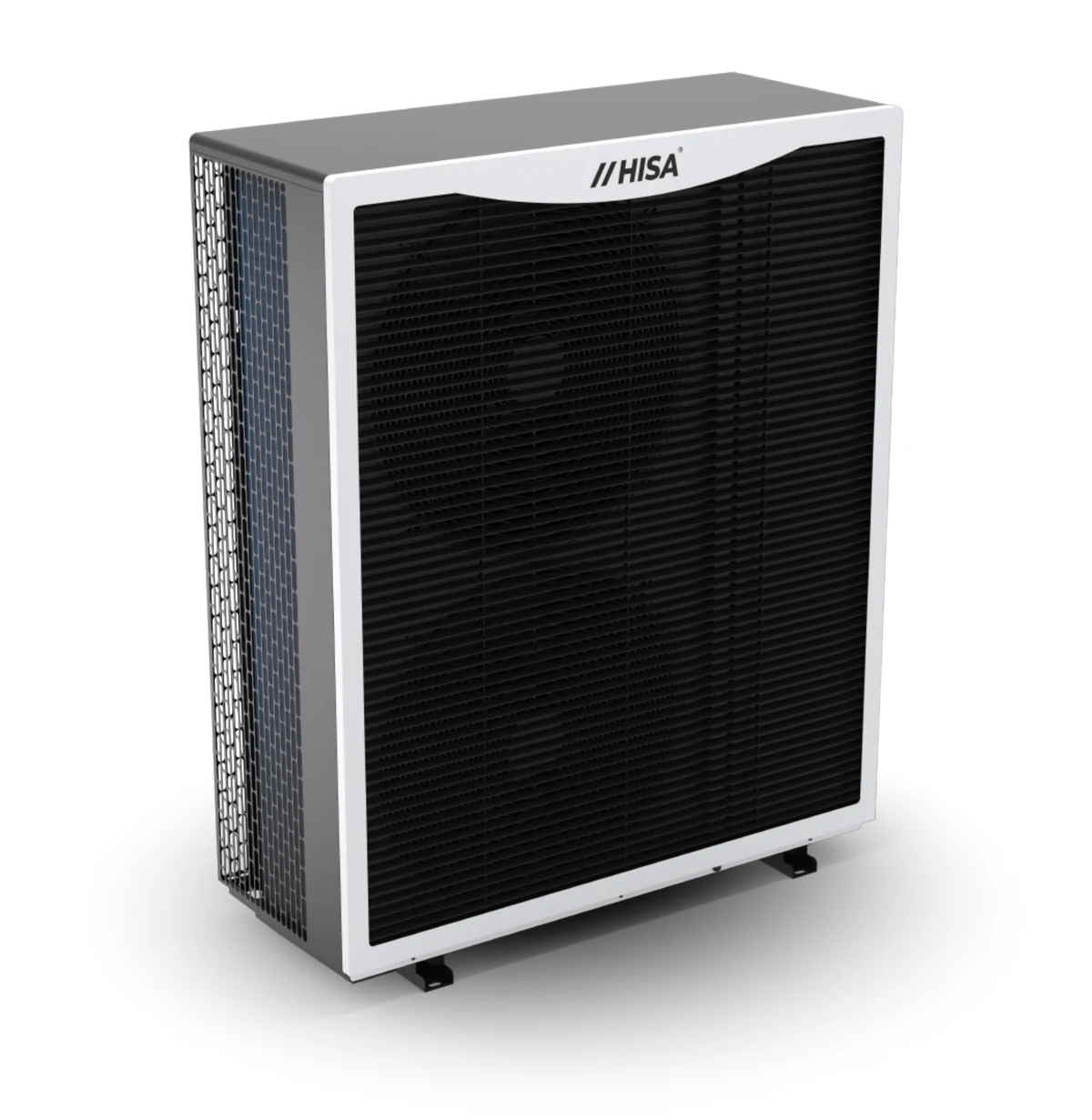

HISA R290 18
All approved rated heating points — 101 points
| Outside °C | Flow °C | Capacity kW |
|---|---|---|
| -25 | 25 | 9.27 |
| -20 | 25 | 11.26 |
| -15 | 25 | 12.88 |
| -10 | 25 | 14.45 |
| -7 | 25 | 15.72 |
| -2 | 25 | 17.25 |
| 2 | 25 | 18.72 |
| 7 | 25 | 19.52 |
| 12 | 25 | 20.02 |
| 20 | 25 | 20.98 |
| 27 | 25 | 21.84 |
| -25 | 35 | 8.99 |
| -20 | 35 | 10.72 |
| -15 | 35 | 12.44 |
| -10 | 35 | 14 |
| -7 | 35 | 15 |
| -2 | 35 | 16.67 |
| 2 | 35 | 18.02 |
| 7 | 35 | 18.92 |
| 12 | 35 | 19.45 |
| 20 | 35 | 20.23 |
| 27 | 35 | 21.12 |
| -25 | 45 | 8.8 |
| -20 | 45 | 10.42 |
| -15 | 45 | 12.14 |
| -10 | 45 | 13.7 |
| -7 | 45 | 14.7 |
| -2 | 45 | 16.37 |
| 2 | 45 | 17.72 |
| 7 | 45 | 18.62 |
| 12 | 45 | 19.15 |
| 20 | 45 | 19.93 |
| 27 | 45 | 20.45 |
| -25 | 50 | 8.7 |
| -20 | 50 | 10.12 |
| -15 | 50 | 11.84 |
| -10 | 50 | 13.4 |
| -7 | 50 | 14.4 |
| -2 | 50 | 16.07 |
| 2 | 50 | 17.42 |
| 7 | 50 | 18.32 |
| 12 | 50 | 18.85 |
| 20 | 50 | 19.32 |
| 27 | 50 | 19.71 |
| -25 | 55 | 8.6 |
| -20 | 55 | 10.07 |
| -15 | 55 | 11.63 |
| -10 | 55 | 13.25 |
| -7 | 55 | 14.14 |
| -2 | 55 | 15.78 |
| 2 | 55 | 17 |
| 7 | 55 | 18.01 |
| 12 | 55 | 18.48 |
| 20 | 55 | 18.87 |
| 27 | 55 | 19.05 |
| -25 | 60 | 8.25 |
| -20 | 60 | 9.55 |
| -15 | 60 | 11.21 |
| -10 | 60 | 12.83 |
| -7 | 60 | 13.72 |
| -2 | 60 | 15.36 |
| 2 | 60 | 16.58 |
| 7 | 60 | 17.59 |
| 12 | 60 | 18.06 |
| 20 | 60 | 18.45 |
| 27 | 60 | 18.63 |
| -25 | 65 | 7.89 |
| -20 | 65 | 9.08 |
| -15 | 65 | 10.86 |
| -10 | 65 | 12.48 |
| -7 | 65 | 13.37 |
| -2 | 65 | 15.01 |
| 2 | 65 | 16.23 |
| 7 | 65 | 17.24 |
| 12 | 65 | 17.71 |
| 20 | 65 | 18.1 |
| 27 | 65 | 18.28 |
| -15 | 70 | 10.53 |
| -10 | 70 | 12.15 |
| -7 | 70 | 13.04 |
| -2 | 70 | 14.68 |
| 2 | 70 | 15.9 |
| 7 | 70 | 16.91 |
| 12 | 70 | 17.38 |
| 20 | 70 | 17.77 |
| 27 | 70 | 17.95 |
| -15 | 75 | 10.25 |
| -10 | 75 | 11.87 |
| -7 | 75 | 12.76 |
| -2 | 75 | 14.4 |
| 2 | 75 | 15.62 |
| 7 | 75 | 16.63 |
| 12 | 75 | 17.1 |
| 20 | 75 | 17.49 |
| -10 | 80 | 11.54 |
| -7 | 80 | 12.43 |
| -2 | 80 | 14.07 |
| 2 | 80 | 15.29 |
| 7 | 80 | 16.3 |
| 12 | 80 | 16.77 |
| 20 | 80 | 17.16 |
SpecificationTHE MODEL.
THE MODEL.
THE FACTS.
HISA R290 4
Operating
- Model
- HISA HR290-004-1PH
- Output class
- 4 kW
- Maximum flow temperature
- 75 °C
- Heating ambient operating range
- -25 ~ +35 °C
- Cooling ambient operating range
- +15 ~ +45 °C
- DHW ambient operating range
- -25 ~ +35 °C
Acoustics
- Sound power level
ErP · Average climate · W35°C - 51 dB(A)
Electrical summary
- Power supply
- 220–240V, single phase, 50Hz
- Maximum input power
- 2.1 kW
- Maximum input current
- 9 A
Refrigerant
- Refrigerant
- R290
- Refrigerant charge
- 0.65 kg
Hydraulic summary
- Water connection
- G1 inch
- Rated water flow
- 0.77 m³/h
- Water-side pressure drop
- 15 kPa
- Minimum / maximum water pressure
- 0.1/0.3 MPa
Physical
- Net dimensions · L × W × H
- 1100 × 438 × 660 mm
- Net weight
- 83 kg
- IP class
- IPX4
HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Sound power is an ErP W35°C value for average climate, not sound pressure at a stated distance. Ambient operating ranges are mode-specific.
HISA R290 6
Operating
- Model
- HISA HR290-006-1PH
- Output class
- 6 kW
- Maximum flow temperature
- 75 °C
- Heating ambient operating range
- -25 ~ +35 °C
- Cooling ambient operating range
- +15 ~ +45 °C
- DHW ambient operating range
- -25 ~ +35 °C
Acoustics
- Sound power level
ErP · Average climate · W35°C - 50 dB(A)
Electrical summary
- Power supply
- 220–240V, single phase, 50Hz
- Maximum input power
- 3.5 kW
- Maximum input current
- 15 A
Refrigerant
- Refrigerant
- R290
- Refrigerant charge
- 0.65 kg
Hydraulic summary
- Water connection
- G1 inch
- Rated water flow
- 1 m³/h
- Water-side pressure drop
- 15 kPa
- Minimum / maximum water pressure
- 0.1/0.3 MPa
Physical
- Net dimensions · L × W × H
- 1220 × 458 × 865 mm
- Net weight
- 110 kg
- IP class
- IPX4
HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Sound power is an ErP W35°C value for average climate, not sound pressure at a stated distance. Ambient operating ranges are mode-specific.
HISA R290 8
Operating
- Model
- HISA HR290-008-1PH
- Output class
- 8 kW
- Maximum flow temperature
- 75 °C
- Heating ambient operating range
- -25 ~ +35 °C
- Cooling ambient operating range
- +15 ~ +45 °C
- DHW ambient operating range
- -25 ~ +35 °C
Acoustics
- Sound power level
ErP · Average climate · W35°C - 49 dB(A)
Electrical summary
- Power supply
- 220–240V, single phase, 50Hz
- Maximum input power
- 5.5 kW
- Maximum input current
- 24 A
Refrigerant
- Refrigerant
- R290
- Refrigerant charge
- 1.1 kg
Hydraulic summary
- Water connection
- G1 inch
- Rated water flow
- 1.4 m³/h
- Water-side pressure drop
- 15 kPa
- Minimum / maximum water pressure
- 0.1/0.3 MPa
Physical
- Net dimensions · L × W × H
- 1320 × 478 × 913 mm
- Net weight
- 162 kg
- IP class
- IPX4
HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Sound power is an ErP W35°C value for average climate, not sound pressure at a stated distance. Ambient operating ranges are mode-specific.
HISA R290 12
Operating
- Model
- HISA HR290-012-1PH
- Output class
- 12 kW
- Maximum flow temperature
- 75 °C
- Heating ambient operating range
- -25 ~ +35 °C
- Cooling ambient operating range
- +15 ~ +45 °C
- DHW ambient operating range
- -25 ~ +35 °C
Acoustics
- Sound power level
ErP · Average climate · W35°C - 51 dB(A)
Electrical summary
- Power supply
- 220–240V, single phase, 50Hz
- Maximum input power
- 6.2 kW
- Maximum input current
- 27 A
Refrigerant
- Refrigerant
- R290
- Refrigerant charge
- 1.1 kg
Hydraulic summary
- Water connection
- G1 inch
- Rated water flow
- 2.06 m³/h
- Water-side pressure drop
- 20 kPa
- Minimum / maximum water pressure
- 0.1/0.3 MPa
Physical
- Net dimensions · L × W × H
- 1320 × 478 × 913 mm
- Net weight
- 162 kg
- IP class
- IPX4
HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Sound power is an ErP W35°C value for average climate, not sound pressure at a stated distance. Ambient operating ranges are mode-specific.
HISA R290 18
Operating
- Model
- HISA HR290-018-1PH
- Output class
- 18 kW
- Maximum flow temperature
- 75 °C
- Heating ambient operating range
- -25 ~ +35 °C
- Cooling ambient operating range
- +15 ~ +45 °C
- DHW ambient operating range
- -25 ~ +35 °C
Acoustics
- Sound power level
ErP · Average climate · W35°C - 51 dB(A)
Electrical summary
- Power supply
- 220–240V, single phase, 50Hz
- Maximum input power
- 8.5 kW
- Maximum input current
- 37 A
Refrigerant
- Refrigerant
- R290
- Refrigerant charge
- 1.5 kg
Hydraulic summary
- Water connection
- G1-1/4 inch
- Rated water flow
- 3.1 m³/h
- Water-side pressure drop
- 25 kPa
- Minimum / maximum water pressure
- 0.1/0.3 MPa
Physical
- Net dimensions · L × W × H
- 1187 × 488 × 1456 mm
- Net weight
- 205 kg
- IP class
- IPX4
HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Sound power is an ErP W35°C value for average climate, not sound pressure at a stated distance. Ambient operating ranges are mode-specific.
Model-specific SCOP is withheld pending current verified data. The approved range headline is not a model-level rating.
HydraulicsDESIGN THE SYSTEM.
DESIGN THE SYSTEM.
SEE THE CONNECTIONS.
HYDRAULIC SPECIFICATIONS
HISA HR290-004-1PH
- Water side connection
- G1 Inch
- Water Pressure Drop
- 15 kPa
- Min/Max Water Pressure
- 0.1/0.3 MPa
- Water Circulation Pump
- DC INVERTER Circulation Pump
- Rated Water Flow
- 0.77 m³/h
HISA HR290-006-1PH
- Water side connection
- G1 Inch
- Water Pressure Drop
- 15 kPa
- Min/Max Water Pressure
- 0.1/0.3 MPa
- Water Circulation Pump
- DC INVERTER Circulation Pump
- Rated Water Flow
- 1 m³/h
HISA HR290-008-1PH
- Water side connection
- G1 Inch
- Water Pressure Drop
- 15 kPa
- Min/Max Water Pressure
- 0.1/0.3 MPa
- Water Circulation Pump
- DC INVERTER Circulation Pump
- Rated Water Flow
- 1.4 m³/h
HISA HR290-012-1PH
- Water side connection
- G1 Inch
- Water Pressure Drop
- 20 kPa
- Min/Max Water Pressure
- 0.1/0.3 MPa
- Water Circulation Pump
- DC INVERTER Circulation Pump
- Rated Water Flow
- 2.06 m³/h
HISA HR290-018-1PH
- Water side connection
- G1-1/4 Inch
- Water Pressure Drop
- 25 kPa
- Min/Max Water Pressure
- 0.1/0.3 MPa
- Water Circulation Pump
- DC INVERTER Circulation Pump
- Rated Water Flow
- 3.1 m³/h
Water-side pressure drop is not available pump head. Values are shown in the units supplied by HISA.
HISA / ENGINEERING
SYSTEM SCHEMATICS
Common HISA system configurations for heating, hot water and multi-unit applications.
General HISA R290 configurations. Confirm suitability for the selected model and project with HISA.

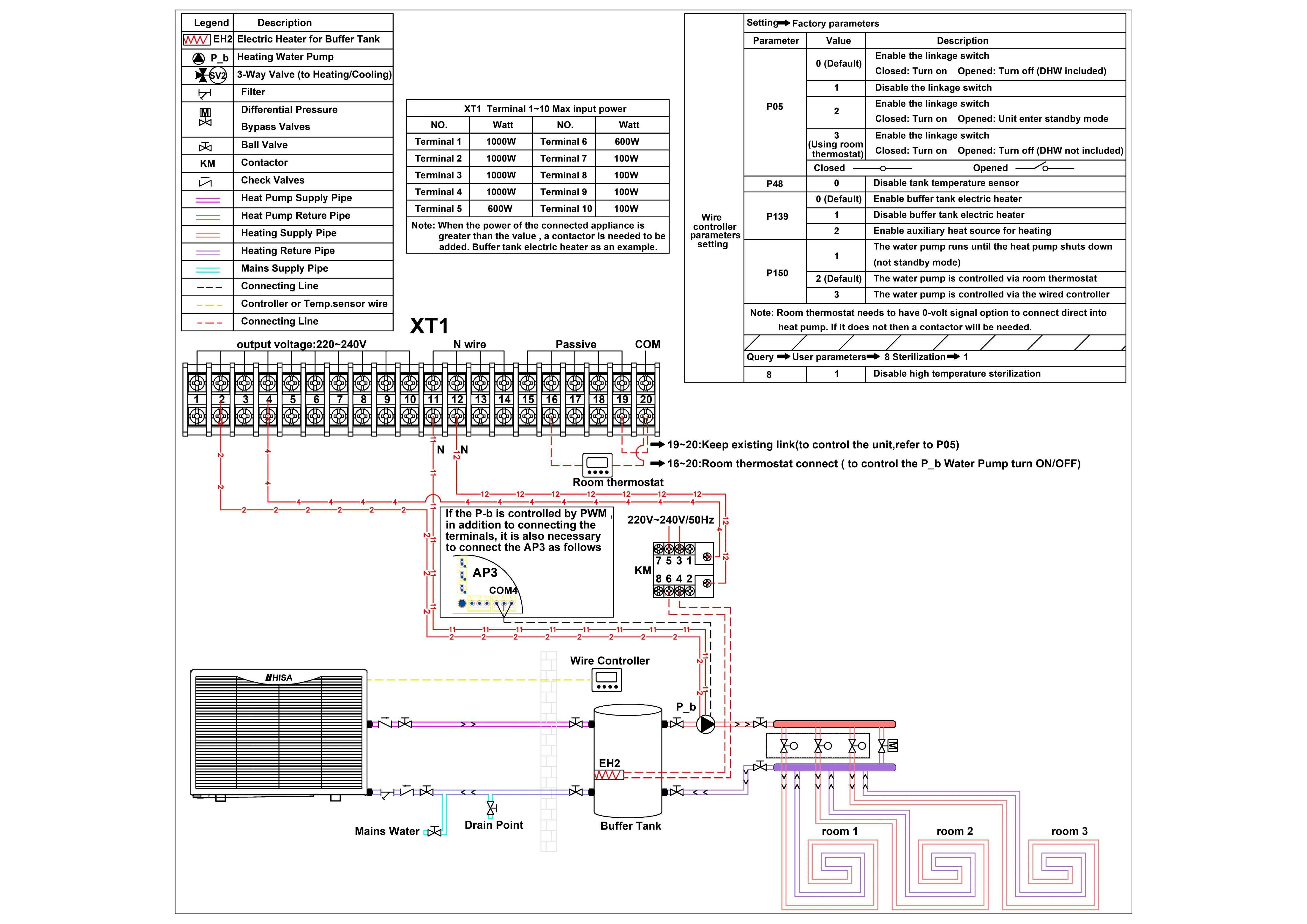

Heating only
Single heating circuit.
The supplied engineering document remains the reference. Read its controls and settings together with the hydraulic arrangement.
Controls & wiring / required settings
Consult the complete PDF for terminal references, controller connections and settings. Do not use the hydraulic view on its own for commissioning.
Download full supplied schematic PDF ↓Typical system schematics are provided as design guidance. Final system design, component selection and installation must suit the individual property and be completed by a suitably competent installer in accordance with current regulations and HISA technical documentation.
Electrical
KNOW THE REQUIREMENTS.
HISA R290 4
- Power supply
- 220–240V, single phase, 50Hz
- Phase
- 1PH
- Maximum current
- 9 A
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Supply design, circuit protection, cable sizes and backup-heater requirements must be confirmed with HISA and the installer.
Verified HISA R290 4 information is being prepared. Contact HISA.
Contact HISAHISA R290 6
- Power supply
- 220–240V, single phase, 50Hz
- Phase
- 1PH
- Maximum current
- 15 A
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Supply design, circuit protection, cable sizes and backup-heater requirements must be confirmed with HISA and the installer.
Verified HISA R290 6 information is being prepared. Contact HISA.
Contact HISAHISA R290 8
- Power supply
- 220–240V, single phase, 50Hz
- Phase
- 1PH
- Maximum current
- 24 A
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Supply design, circuit protection, cable sizes and backup-heater requirements must be confirmed with HISA and the installer.
Verified HISA R290 8 information is being prepared. Contact HISA.
Contact HISAHISA R290 12
- Power supply
- 220–240V, single phase, 50Hz
- Phase
- 1PH
- Maximum current
- 27 A
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Supply design, circuit protection, cable sizes and backup-heater requirements must be confirmed with HISA and the installer.
Verified HISA R290 12 information is being prepared. Contact HISA.
Contact HISAHISA R290 18
- Power supply
- 220–240V, single phase, 50Hz
- Phase
- 1PH
- Maximum current
- 37 A
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Supply design, circuit protection, cable sizes and backup-heater requirements must be confirmed with HISA and the installer.
Verified HISA R290 18 information is being prepared. Contact HISA.
Contact HISADimensionsMAKE ROOM.
MAKE ROOM.
GET IT RIGHT.
HISA R290 4
- Length
- 1100 mm
- Width (source W)
- 438 mm
- Height
- 660 mm
- Net weight
- 83 kg
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Installation clearances, pipe positions and dimensioned drawings are being prepared. Product imagery is not an installation drawing.
Verified HISA R290 4 information is being prepared. Contact HISA.
Contact HISAHISA R290 6
- Length
- 1220 mm
- Width (source W)
- 458 mm
- Height
- 865 mm
- Net weight
- 110 kg
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Installation clearances, pipe positions and dimensioned drawings are being prepared. Product imagery is not an installation drawing.
Verified HISA R290 6 information is being prepared. Contact HISA.
Contact HISAHISA R290 8
- Length
- 1320 mm
- Width (source W)
- 478 mm
- Height
- 913 mm
- Net weight
- 162 kg
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Installation clearances, pipe positions and dimensioned drawings are being prepared. Product imagery is not an installation drawing.
Verified HISA R290 8 information is being prepared. Contact HISA.
Contact HISAHISA R290 12
- Length
- 1320 mm
- Width (source W)
- 478 mm
- Height
- 913 mm
- Net weight
- 162 kg
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Installation clearances, pipe positions and dimensioned drawings are being prepared. Product imagery is not an installation drawing.
Verified HISA R290 12 information is being prepared. Contact HISA.
Contact HISAHISA R290 18
- Length
- 1187 mm
- Width (source W)
- 488 mm
- Height
- 1456 mm
- Net weight
- 205 kg
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Installation clearances, pipe positions and dimensioned drawings are being prepared. Product imagery is not an installation drawing.
Verified HISA R290 18 information is being prepared. Contact HISA.
Contact HISACertificationTHE RIGHT RECORD.
THE RIGHT RECORD.
THE RIGHT GENERATION.
Certification and database registrations, clearly identified by product generation.
This page describes the Gen 2 HISA range. Existing Gen 1 certificates and PCDB registrations apply to the existing Gen 1 products, not the changed Gen 2 specification.
HISA HR290-004-1PH
GEN 2 / CURRENT PRODUCT GENERATION
MCS
MCS certification in progress
No certificate number issued for display
ECO4 / PCDB
No PCDB registration number has been supplied for this model.
HISA HR290-006-1PH
GEN 2 / CURRENT PRODUCT GENERATION
MCS
MCS certification update in progress
No certificate number issued for display
ECO4 / PCDB
Gen 2 PCDB registration details have not yet been supplied.
GEN 1 / EXISTING HISA RECORDS
These records belong to the existing Gen 1 product, not the Gen 2 specification shown elsewhere on this page.
MCS
Certified — Gen 1
MCS HP0345/01
ECO4 / PCDB
Product Characteristics Database · Gen 1
The existing HISA models shown here have PCDB registrations for use in relevant energy-efficiency assessment and ECO frameworks. Registration alone does not establish eligibility for an individual installation.
WITH WEATHER COMPENSATION
35°C flow107874
45°C flow107873
55°C flow107872
HISA HR290-008-1PH
GEN 2 / CURRENT PRODUCT GENERATION
MCS
MCS certification update in progress
No certificate number issued for display
ECO4 / PCDB
Gen 2 PCDB registration details have not yet been supplied.
GEN 1 / EXISTING HISA RECORDS
These records belong to the existing Gen 1 product, not the Gen 2 specification shown elsewhere on this page.
MCS
Certified — Gen 1
MCS HP0345/02
ECO4 / PCDB
Product Characteristics Database · Gen 1
The existing HISA models shown here have PCDB registrations for use in relevant energy-efficiency assessment and ECO frameworks. Registration alone does not establish eligibility for an individual installation.
WITH WEATHER COMPENSATION
35°C flow107850
45°C flow107849
55°C flow107848
HISA HR290-012-1PH
GEN 2 / CURRENT PRODUCT GENERATION
MCS
MCS certification update in progress
No certificate number issued for display
ECO4 / PCDB
Gen 2 PCDB registration details have not yet been supplied.
GEN 1 / EXISTING HISA RECORDS
These records belong to the existing Gen 1 product, not the Gen 2 specification shown elsewhere on this page.
MCS
Certified — Gen 1
MCS HP0345/03
ECO4 / PCDB
Product Characteristics Database · Gen 1
The existing HISA models shown here have PCDB registrations for use in relevant energy-efficiency assessment and ECO frameworks. Registration alone does not establish eligibility for an individual installation.
WITH WEATHER COMPENSATION
35°C flow107858
45°C flow107857
55°C flow107856
HISA HR290-018-1PH
GEN 2 / CURRENT PRODUCT GENERATION
MCS
MCS certification update in progress
No certificate number issued for display
ECO4 / PCDB
Gen 2 PCDB registration details have not yet been supplied.
GEN 1 / EXISTING HISA RECORDS
These records belong to the existing Gen 1 product, not the Gen 2 specification shown elsewhere on this page.
MCS
Certified — Gen 1
MCS HP0345/04
ECO4 / PCDB
Product Characteristics Database · Gen 1
The existing HISA models shown here have PCDB registrations for use in relevant energy-efficiency assessment and ECO frameworks. Registration alone does not establish eligibility for an individual installation.
WITH WEATHER COMPENSATION
35°C flow107866
45°C flow107865
55°C flow107864
DownloadsEVERYTHING YOU NEED.
EVERYTHING YOU NEED.
IN ONE PLACE.
Technical documentation for the HISA R290 heat pump range.
Product information
HISA R290
Technical Specification
Generation 24 | 6 | 8 | 12 | 18 kW
Core product technical specification for the HISA R290 range.
SIDE BY SIDE
THE DIFFERENCES.
WITHOUT THE NOISE.
Compare Gen 2 dimensions, weight, water connections and maximum input current. Final selection belongs to a heat-loss calculation, not an output-class label.
HISA R290 4
- Refrigerant
- R290
- Output class (not test-point capacity)
- 4 kW
- Net dimensions · L × W × H
- 1100 × 438 × 660 mm
- Net weight
- 83 kg
- Water connection
- G1 inch
- Maximum current
- 9 A
- Sound power · ErP W35°C
- 51 dB(A)
- Power supply
- 220–240V, single phase, 50Hz
- Phase
- 1PH
- Maximum flow temperature
- 75 °C
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Explore this model ↗HISA R290 6
- Refrigerant
- R290
- Output class (not test-point capacity)
- 6 kW
- Net dimensions · L × W × H
- 1220 × 458 × 865 mm
- Net weight
- 110 kg
- Water connection
- G1 inch
- Maximum current
- 15 A
- Sound power · ErP W35°C
- 50 dB(A)
- Power supply
- 220–240V, single phase, 50Hz
- Phase
- 1PH
- Maximum flow temperature
- 75 °C
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Explore this model ↗HISA R290 8
- Refrigerant
- R290
- Output class (not test-point capacity)
- 8 kW
- Net dimensions · L × W × H
- 1320 × 478 × 913 mm
- Net weight
- 162 kg
- Water connection
- G1 inch
- Maximum current
- 24 A
- Sound power · ErP W35°C
- 49 dB(A)
- Power supply
- 220–240V, single phase, 50Hz
- Phase
- 1PH
- Maximum flow temperature
- 75 °C
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Explore this model ↗HISA R290 12
- Refrigerant
- R290
- Output class (not test-point capacity)
- 12 kW
- Net dimensions · L × W × H
- 1320 × 478 × 913 mm
- Net weight
- 162 kg
- Water connection
- G1 inch
- Maximum current
- 27 A
- Sound power · ErP W35°C
- 51 dB(A)
- Power supply
- 220–240V, single phase, 50Hz
- Phase
- 1PH
- Maximum flow temperature
- 75 °C
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Explore this model ↗HISA R290 18
- Refrigerant
- R290
- Output class (not test-point capacity)
- 18 kW
- Net dimensions · L × W × H
- 1187 × 488 × 1456 mm
- Net weight
- 205 kg
- Water connection
- G1-1/4 inch
- Maximum current
- 37 A
- Sound power · ErP W35°C
- 51 dB(A)
- Power supply
- 220–240V, single phase, 50Hz
- Phase
- 1PH
- Maximum flow temperature
- 75 °C
Source: HISA Gen 2 product specifications. Confirm installation-specific requirements against current HISA documentation.
Explore this model ↗HISA+
BUILT FOR THE LONG TERM.
A heating system should be a twenty-year decision. HISA+ is how we stand behind that.
01
10-year warranty
Parts and labour.
02
Lifetime monitoring
Remote monitoring for the life of the system.
03
UK technical support
Real engineers, based here.
04
Spare parts support
Held and supported long term.
HISA / YOUR NEXT STEP
READY FOR HISA?
Tell us about your home or your project. We will help you take the next step with the right installer.
LET’S FIND YOUR NEXT STEP.
Contact the HISA team for installer guidance, current model information and technical support.
enquiries@hisauk.com0141 530 2010
